Nuctech — CX120200D

Hold Baggage · Model brochure & technical specifications

Back to X-Compare
Compare CX120200D against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs Smiths Detection SDX 10080 SCT vs Smiths Detection HI SCAN 10080 EDX 2IS vs Smiths Detection HI SCAN 10080 XCT
Open X-Compare

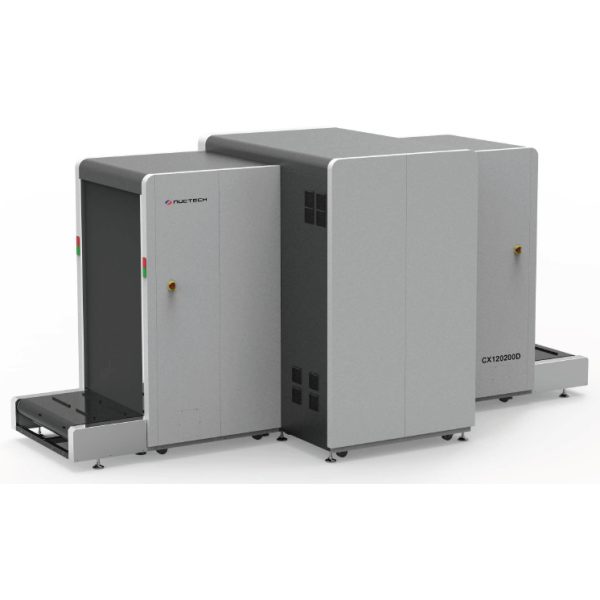

Nuctech CX120200D
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1250
Tunnel Height (mm)
2010
Conveyor
Conveyor Height (mm)
400
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
750
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
44
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
5736 x 2500 x 2735
Weight (kg)
5000
Electrical
Power
220VAC ~ 240VAC (-15% ~ +10%), 50Hz/60Hz ±3Hz, 2.5kVA
Software
Software / OS
Windows
Options
Options
Explosives/narcotics detections, high-density area alert, threat image projection (TIP)
Features
Features (6)
  • High-efficiency
  • non-intrusive security inspection for airline trolleys and containers
  • High image quality
  • Dual-view x-ray imaging design
  • Specially designed conveyor system
  • Radiation leakage comply with international health and safety standards
